Aruba R8N89A

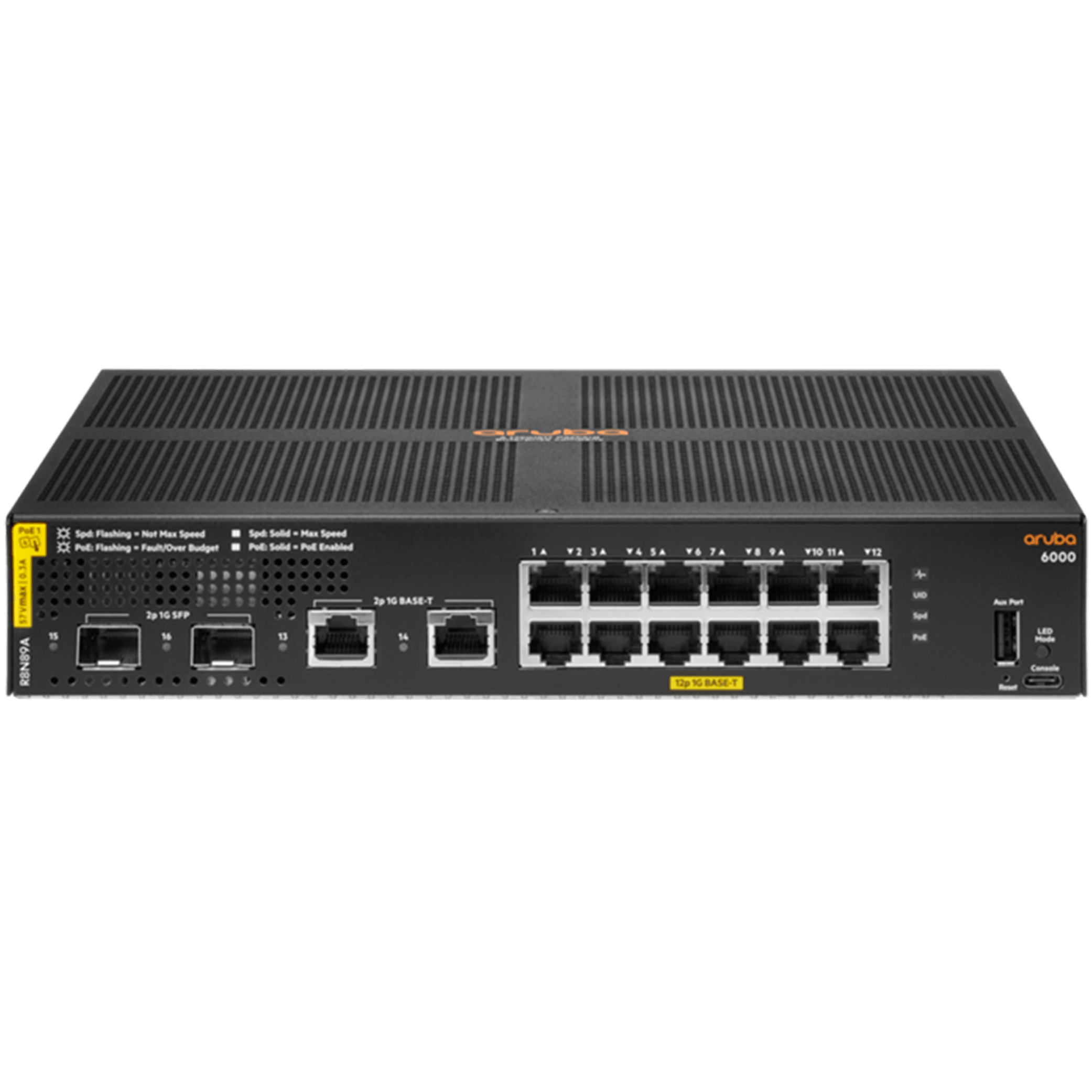

Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch – R8N89A

About this product:

The Aruba CX 6000 Switch Series offers entry-level access switches tailored for branch offices, midsize businesses, and small enterprises. Designed for reliable, secure access, these switches provide a cost-effective solution for networks supporting IoT, mobile, and cloud applications. With a focus on simplicity and efficiency, the CX 6000 series boasts enterprise-class features, flexible management options, and a compact, fanless design suitable for various environments.

What’s in the box?

  • Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch – R8N89A
  • User Manual
Request a Quote
Categories: ,

Description

Features of Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch – R8N89A :

  • Enterprise-Class Connectivity: Enjoy robust Layer 2 capabilities, including ACL support, quality of service (QoS), and static routing for optimized network performance and security.
  • IoT Device Support: Built-in 1GbE uplinks and up to 370W of Class 4 Power over Ethernet (PoE+) facilitate seamless integration of IoT devices such as security cameras and wireless access points.
  • Compact and Fanless Design: The 12-port model offers a space-saving solution ideal for quiet workspaces, ensuring flexibility without noise.
  • Management Flexibility: Choose from a range of management options, including Web GUI, command-line interface (CLI), cloud-based Aruba Central, and on-premise management, to suit your business and network requirements.
  • Simplified Deployment: Zero Touch Provisioning streamlines setup processes, while REST APIs enable software-defined networking capabilities.
  • Easy Maintenance: Colorless ports simplify adds, moves, and changes, reducing operational complexity and enhancing efficiency.
  • Peace of Mind: Benefit from no switch software licensing fees and a Limited Lifetime Warranty, ensuring a worry-free ownership experience.

Specification

CX6000 Series Specifications
Aruba 6000 48G Class4 PoE 4SFP 370W Switch (R8N85A) Aruba 6000 48G 4SFP Switch
(R8N86A)		 Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A) Aruba 6000 24G 4SFP Switch
(R8N88A)		 Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch (R8N89A)
Description 48x ports 10/100/1000BASE-T Ports

4x 1G SFP ports

Supports PoE Standards IEEE 802.3af, 802.3at

1x USB-C Console Port
1x USB Type-A Host port

 48x ports 10/100/1000BASE-T Ports

4x 1G SFP ports

1x USB-C Console Port
1x USB Type-A Host port

 24x ports 10/100/1000BASE-T Ports

4x 1G SFP ports

Supports PoE Standards IEEE 802.3af, 802.3at

1x USB-C Console Port
1x USB Type-A Host port

 24x ports 10/100/1000BASE-T Ports

4x 1G SFP ports

1x USB-C Console Port
1x USB Type-A Host port

 12x ports 10/100/1000BASE-T Ports

2x 1G SFP ports
2x 1GbE ports

Supports PoE Standards IEEE 802.3af, 802.3at

1x USB-C Console Port
1x USB Type-A Host port
Power supplies Fixed power supply

Up to 370W of Class 4 PoE Power

 Fixed power supply Fixed power supply

Up to 370W of Class 4 PoE Power

 Fixed power supply Fixed power supply

Up to 139W of Class 4 PoE Power
Fans Fixed fans Fixed fans Fixed fans Fixed fans Fanless
Physical characteristics
Dimensions (H) 4.39 cm
(W) 44.2 cm
(D) 30.48 cm
(1.73″ x 17.4″ x 12.0″)		 (H) 4.39 cm
(W) 44.2 cm
(D) 24.74 cm
(1.73″ x 17.4″ x x 9.74″)		 (H) 4.39 cm
(W) 44.2 cm
(D) 26.82 cm
(1.73″ x 17.4″ x x 10.56″)		 (H) 4.39 cm
(W) 44.2 cm
(D) 20.12 cm
(1.73″ x 17.4″ x x 7.92″)		 (H) 4.39 cm
(W) 25.4 cm
(D) 25.5 cm
(1.73″ x 10.0″ x x 10.04″)
Configuration Weight 5.02 kg (11.07 lbs) 3.42 kg (7.54 lbs) 4.19kg (9.24 lbs) 2.62 kg (5.78 lbs) 2.78 kg (6.13 lbs)
Additional Specifications
CPU Dual Core ARM Cortex A9 @ 1016 Mhz Dual Core ARM Cortex A9 @ 1016 Mhz Dual Core ARM Cortex A9 @ 1016 Mhz Dual Core ARM Cortex A9 @ 1016 Mhz Dual Core ARM Cortex A9 @ 1016 Mhz
Memory and Flash 4 GB DDR3
16 GB eMMC		 4 GB DDR3
16 GB eMMC		 4 GB DDR3
16 GB eMMC		 4 GB DDR3
16 GB eMMC		 4 GB DDR3
16 GB eMMC
Packet Buffer 12.38MB (4.5MB Ingress/7.875MB Egress) 12.38MB (4.5MB Ingress/7.875MB Egress) 12.38MB (4.5MB Ingress/7.875MB Egress) 12.38MB (4.5MB Ingress/7.875MB Egress) 12.38MB (4.5MB Ingress/7.875MB Egress)
Performance
Model Switching Capacity 104 Gbps 104 Gbps 56 Gbps 56 Gbps 32 Gbps
Model Throughput Capacity 77.3 Mpps 77.3 Mpps 41.6 Mpps 41.6 Mpps 23.8 Mpps
Average Latency (LIFO-64-bytes packets) 1 Gbps: 1.9 μSec 1 Gbps: 1.9 μSec 1 Gbps: 1.5 μSec 1 Gbps: 1.5 μSec 1 Gbps: 2.3 μSec
Switched Virtual Interfaces (dual stack) 16 16 16 16 16
IPv4 Host Table (ARP) 1,024 1,024 1,024 1,024 1,024
IPv6 Host Table (ND) 512 512 512 512 512
IPv4 Unicast Routes 512 512 512 512 512
IPv6 Unicast Routes 512 512 512 512 512
MAC Table Capacity 8,192 8,192 8,192 8,192 8,192
IGMP Groups 512 512 512 512 512
MLD Groups 512 512 512 512 512
IPv4/IPv6/MAC ACL Entries (ingress) 256 / 128 / 256 256 / 128 / 256 256 / 128 / 256 256 / 128 / 256 256 / 128 / 256
Environment
Operating Temperature 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)
Operating Relative Humidity 15% to 95% at 104°F (40°C) non-condensing 15% to 95% at 104°F (40°C) non-condensing 15% to 95% at 104°F (40°C) non-condensing 15% to 95% at 104°F (40°C) non-condensing 15% to 95% at 104°F (40°C) non-condensing
Non-Operating -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km)
Non-Operating Storage Relative Humidity 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing 15% to 90% @ 149°F (65°C) non-condensing
Max Operating Altitude 10000 feet (3 km) Max 10000 feet (3 km) Max 10000 feet (3 km) Max 10000 feet (3 km) Max 10000 feet (3 km) Max
Max Non-Operating Altitude 15000 feet (4.6 km) Max 15000 feet (4.6 km) Max 15000 feet (4.6 km) Max 15000 feet (4.6 km) Max 15000 feet (4.6 km) Max
Acoustic Sound Power, LWAd = 4.3 Bel Sound Pressure, LpAm (Bystander) = 29.8 dB Sound Power, LWAd = 3.6 Bel Sound Pressure, LpAm (Bystander) = 24.6 dB Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 24.3 dB Sound Power, LWAd = 3.9 Bel Sound Pressure, LpAm (Bystander) = 20.9 dB Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB
Primary Airflow Side-to-side Side-to-side Side-to-side Side-to-side —
Electrical Characteristics
Frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz
AC Voltage 100-127 VAC / 200-240 VAC 100-127 VAC / 200-240 VAC 100-127 VAC / 200-240 VAC 100-127 VAC / 200-240 VAC 100-127 VAC / 200-240 VAC
Current 4.9 A / 2.4 A 0.8 A / 0.5 A 4.6 A / 2.3 A 0.6 A / 0.4 A 1.8 A / 0.9 A
Power Consumption (230 VAC) Idle: 30.6W
Max Power (w/o PoE): 45W
Max Power (w/ PoE): 480W		 Idle: 20.6W
Max Power (w/o PoE): 44.2W		 Idle: 22.9W
Max Power (w/o PoE): 32.7W
Max Power (w/ PoE): 455W		 Idle: 15.4W
Max Power (w/o PoE): 33W		 Idle: 16W
Max Power (w/o PoE): 21.9W
Max Power (w/ PoE): 170W
Safety
UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014		 UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014		 UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014		 UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014		 UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1
UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions
VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Lasers
EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)		 EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)		 EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)		 EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)		 EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Class 1 Laser Products / Laser Klasse 1
(Applicable for accessories – Optical Transceivers only)
Immunity
Generic CISPR 24 / CISPR 35 CISPR 24 / CISPR 35 CISPR 24 / CISPR 35 CISPR 24 / CISPR 35 CISPR 24 / CISPR 35
EN EN 55024:2010 / EN 55035:2017 EN 55024:2010 / EN 55035:2017 EN 55024:2010 / EN 55035:2017 EN 55024:2010 / EN 55035:2017 EN 55024:2010 / EN 55035:2017
ESD IEC 61000-4-2 IEC 61000-4-2 IEC 61000-4-2 IEC 61000-4-2 IEC 61000-4-2
Radiated IEC 61000-4-3 IEC 61000-4-3 IEC 61000-4-3 IEC 61000-4-3 IEC 61000-4-3
EFT/Burst IEC 61000-4-4 IEC 61000-4-4 IEC 61000-4-4 IEC 61000-4-4 IEC 61000-4-4
Surge IEC 61000-4-5 IEC 61000-4-5 IEC 61000-4-5 IEC 61000-4-5 IEC 61000-4-5
Conducted IEC 61000-4-6 IEC 61000-4-6 IEC 61000-4-6 IEC 61000-4-6 IEC 61000-4-6
Power frequency magnetic field IEC 61000-4-8 IEC 61000-4-8 IEC 61000-4-8 IEC 61000-4-8 IEC 61000-4-8
Voltage dips and interruptions IEC 61000-4-11 IEC 61000-4-11 IEC 61000-4-11 IEC 61000-4-11 IEC 61000-4-11
Harmonics EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2 EN 61000-3-2, IEC 61000-3-2
Flicker EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3 EN 61000-3-3, IEC 61000-3-3
Mounting and Enclosure
Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting
