Aruba 8100 48x10G Back-to-Front Switch - R9W91A

  1. Home
  2. Networking Switches
  3. Aruba Networks
  4. Aruba 8100 48XF4C 3 Fans, 2 AC Power Supplies – R9W91A
Aruba R9W90A

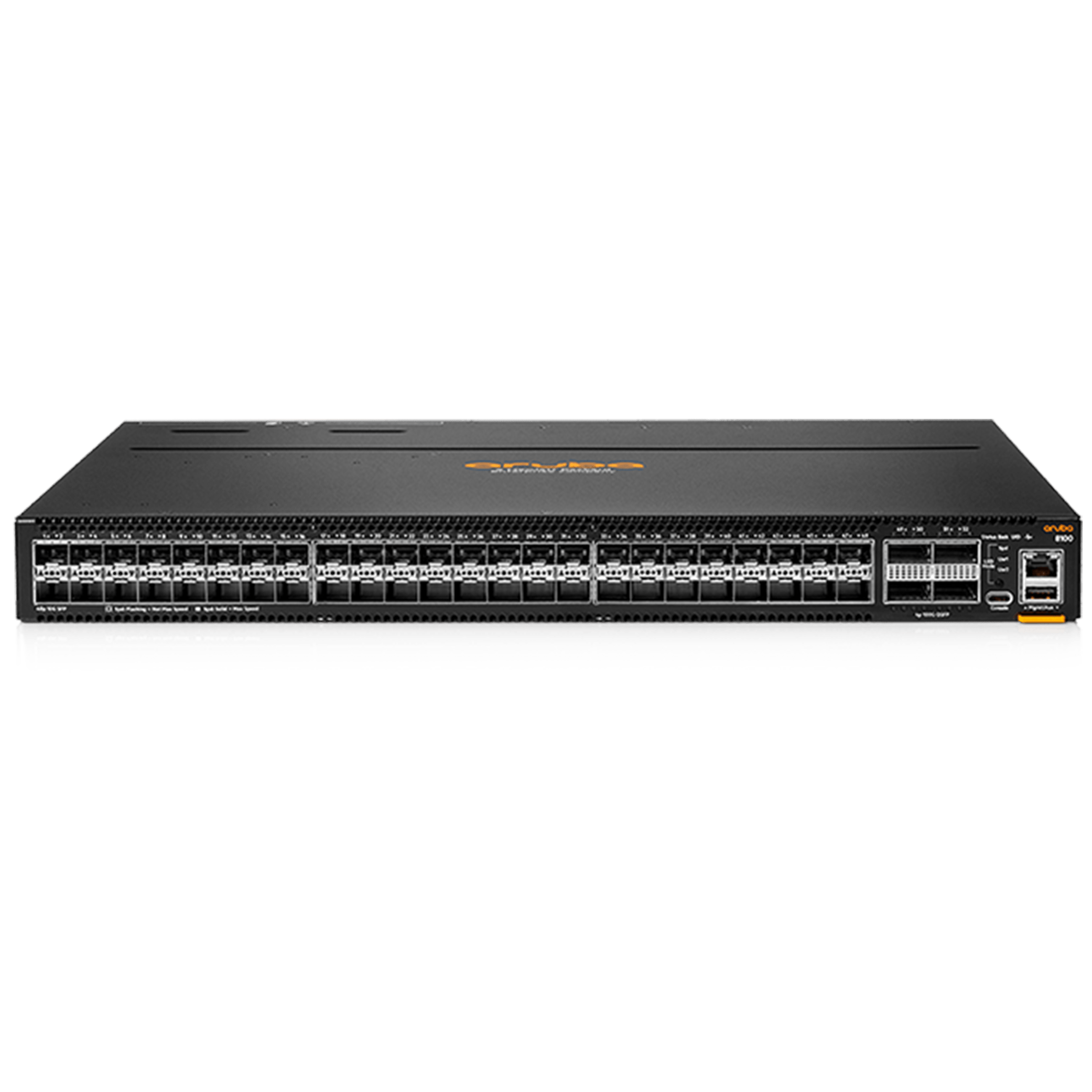

Aruba 8100 48XF4C 3 Fans, 2 AC Power Supplies – R9W91A

About this product:

The Aruba CX 8100 Switch Series offers a versatile solution for addressing the demands of modern networking environments. With up to 2.4Tbps of capacity, it caters to the core and aggregation needs of campuses and dynamic data centers. Featuring line-rate Gigabit Ethernet interfaces supporting Smart Rate (1/2.5/5 Gbps), 10Gbps, 25Gbps, 40Gbps, and 100Gbps, alongside 1/10GbE and 40/100GbE connectivity, these switches ensure seamless connectivity and scalability. Ideal for customers needing a mix of fiber and copper ports, as well as 40/100GbE uplink ports, the CX 8100 series delivers exceptional performance and flexibility in a compact 1U form factor.

What’s in the box?

  • Aruba 8100 48XF4C 3 Fans, 2 AC Power Supplies – R9W91A
  • User Manual
Request a Quote
Categories: ,

Description

Features of Aruba 8100 48XF4C 3 Fans, 2 AC Power Supplies – R9W91A :

  • High-performance: Offers 1.76Tbps throughput and 1,309 Mpps forwarding rate.
  • Intelligent monitoring and visibility: Equipped with the Aruba Network Analytics Engine for enhanced network monitoring and troubleshooting.
  • High availability: Features industry-leading VSX redundancy, redundant power supplies, and fans to ensure continuous operation.
  • Designed for core/aggregation: Suitable for deployment in campus core, Top of Rack, or End of Row configurations in data center environments.
  • ArubaOS-CX automation and programmability: Supports automation and programmability through built-in REST APIs and Python scripts.
  • Advanced Layer 2/3 feature set: Includes support for BGP, OSPF, VRF, and IPv6 protocols for comprehensive networking capabilities.
  • Smart Rate ports: Addition of Smart Rate (1/2.5/5/10G) ports on specific models for flexible connectivity options.

Specification

CX 8100 Series Specifications
Aruba 8100 24XF4C 3 Fans, 2 AC Power Supplies [R9W87A (Back to Front)] Aruba 8100 24XT4XF4C 3 Fans, 2 AC Power Supplies [R9W89A (Back to Front)] Aruba 8100 48XF4C 3 Fans, 2 AC Power Supplies [R9W91A (Back to Front)] Aruba 8100 40XT8XF4C 3 Fans, 2 AC Power Supplies [R9W93A (Back to Front)]
I/O ports and slots
  24 ports of 1GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28)		 24 ports of 100M/1/2.5/5/10 GbE
4 ports of 1/GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28)		 48 ports of 1GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28)		 40 ports of 100M/1/2.5/5/10 GbE
8 ports of 1/GbE/10GbE (SFP/SFP+)
4 ports of 40GbE/100GbE (QSFP+/QSFP28)
Additional ports and slots
Power supplies 2 field-replaceable and hot-swappable power supplies1
Fans 3 field-replaceable and hot-swappable fans2
Management RJ-45 serial and USB-C console; RJ-45 Ethernet port; USB-Type A
Physical characteristics
Physical Dimensions (HxWxD) 1.73in x 17.4in x 16.0in (44.0mm x 442.5mm x 406.4mm)
Full configuration weight 18.0 lbs (8.16 kg) 18.3 lbs (8.30 kg) 18.5 lbs (8.39 kg) 18.9 lbs (8.57 kg)
Memory and Processor
CPU 1.8 GHz 4-core 64-bit
Memory and Flash 16GB RAM, 32GB Flash/Storage
Packet Buffer 32MB
Performance1
Switching Capacity 1.28 Tbps 1.36 Tbps 1.76 Tbps 1.76 Tbps
MAC Address Table Size 147,456
IPv4 Host Table 65,636
IPv6 Host Table 65,636
IPv4 Unicast Routes 24,576
IPv6 Unicast Routes 12,288
Maximum Number of Access Control List (ACL) Entries Ingress IPv4 2,048 , IPv6 512, MAC 2,048
Maximum VLANs 1,024
IGMP Groups 4,000
MLD Groups 4,000
IPv4 Multicast Routes 4,096
IPv6 Multicast Routes 4,096
Environment
Operating Temperature3 32°F to 104°F (0°C to 40°C) up to 5000 ft
Non-Operating Temperature -40°C to 70°C (-40°F to 158°F) up to 4.6 km (15,000 ft.)
Operating Relative Humidity 15% to 95%, relative humidity at 104°F (40°C), non-condensing
Non-Operating Storage Relative Humidity 15% to 95% at 149°F (65°C) non-condensing
Max Operating Altitude Up to 10,000ft (3.048 km)
Max Non-Operating Altitude Up to 15,000ft (4.6km)
Primary Airflow Back-to-Front
BTU/hr# 1275 1364 1535 1705
Acoustic4 LWAd = 5.9 Bel
LpAm (Bystander) = 41.2 dB		 LWAd = 6.6 Bel
LpAm (Bystander) = 47.7 dB		 LWAd = 6.3 Bel
LpAm (Bystander) = 44.9 dB		 LWAd = 6.8 Bel
LpAm (Bystander) = 49.3 dB
Electrical Characteristics
Frequency 47-63 Hz
AC Voltage 100-127V – 7.1 A for 100-127VAC
200-240V – 3.4A for 200-240VAC
Power consumption (230VAC) 120W Idle Power / 375W Max Power 120W Idle Power / 400W Max Power 120W Idle Power / 450W Max Power 120W Idle Power / 500W Max Power
Regulatory
Compliance Products comply with CE Markings according to directives 2014/30/EU (EMC) and 2014/35/EU (Safety)
RoHS EN 63000:2018
Safety
North America UL62368-1, CSA 22.2 No 62368-1
Worldwide IEC 62368-1:2014
IEC 62368-1:2018
EMC
EN55032:2015/CISPR 32, Class A
FCC CFR 47 Part 15:2018, Class A ICES-003, Class A
CNS 13438 Class A
KN32 Class A
VCCI Class A
AS/NZS CISPR 32 Class A
EN55035:2017/CISPR 35
EN/IEC 61000-4-2
EN/IEC 61000-4-3
EN/IEC 61000-4-4
EN/IEC 61000-4-5
EN/IEC 61000-4-6
EN/IEC 61000-4-8
EN/IEC 61000-4-11
EN/IEC 61000-3-2:2019
EN/IEC 61000-3-3:2013
Lasers
EN60825-1:2014 / IEC 60825-1: 2014 Class 1
Class 1 Laser Products / Laser Klasse 1
Mounting
Mounts in an EIA standard 19-inch rack or other equipment cabinet; horizontal surface mounting only; 2-post and 4-post mounting options available5; air duct available for 4-post deployments and sold separately
