Aruba R0X29A

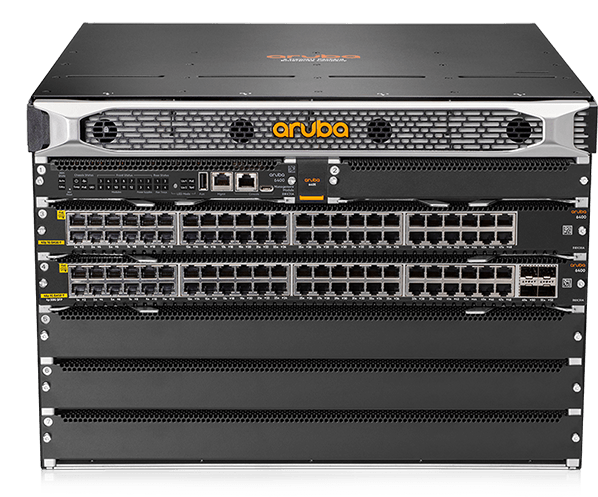

Aruba CX 6405 96G CLS4 PoE 4SFP56 Switch bundle – R0X29A

About this product:

The Aruba CX 6400 Switch Series represents the pinnacle of modern networking solutions, integrating cutting-edge hardware, software, analytics, and automation tools. As part of the Aruba CX switching portfolio, these switches are tailored to meet the demands of today’s enterprise environments, including campuses, branches, and data centers. With a modern, fully programmable operating system and the Aruba Network Analytics Engine, the CX 6400 switches deliver unparalleled monitoring and troubleshooting capabilities across the entire network infrastructure.

What’s in the box?

  • Aruba CX 6405 96G CLS4 PoE 4SFP56 Switch bundle – R0X29A
  • User Manual
Request a Quote
Categories: ,

Description

Features of Aruba CX 6405 96G CLS4 PoE 4SFP56 Switch bundle – R0X29A:

  • Robust modular Layer 3 switches supporting advanced protocols such as BGP, EVPN, VXLAN, VRF, and OSPF, ensuring robust security and Quality of Service (QoS).
  • High-performance switching capabilities with up to 28 Tbps throughput and 11.4 Bpps packet processing.
  • Enhanced availability features, including industry-leading Virtual Switching Extension (VSX) redundancy, redundant power supplies, and fans.
  • Comprehensive connectivity options, including full-density HPE Smart Rate (1/2.5/5GbE) multigigabit ports, 60W Power over Ethernet (PoE) support, and SFP+ modules.
  • Support for high-speed, non-blocking interfaces ranging from 1GbE to 100GbE, catering to diverse networking requirements.
  • Intelligent monitoring, visibility, and remediation functionalities powered by the Aruba Network Analytics Engine, facilitate proactive network management.
  • Unified management capabilities via a single management interface with Aruba Central, offering seamless oversight across wired, wireless, and wide-area network (WAN) environments.
  • Automated configuration and verification support through Aruba NetEdit, streamlining network administration tasks.
  • Aruba Dynamic Segmentation extends wireless role-based policy capabilities to wired switches, ensuring consistent security and simplified IT management across the entire network infrastructure.

Specification

CX6400 Series Specifications
Aruba 6405 Switch (R0X26A) Aruba 6410 Switch (R0X27A) Aruba 6405 96G CL4 PoE 4SFP56 Switch bundle (R0X29A) Aruba 6405 48SFP+ 8SFP56 Switch bundle (R0X30A) Aruba 6410 96G CLS4 PoE 4SFP56 Switch (JL741A)
Description 1x 6405 Chassis (R0X24A) 1x Management Module (R0X31A) 2x Fan Trays (R0X32A) 5 open module slots Power supply units not included; order separately Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App 1x 6410 Chassis (R0X25A) 1x Management Module (R0X31A) 4x Fan Trays (R0X32A) 10 open module slots Power supply units not included; order separately Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App 1x 6405 Chassis (R0X24A) 1x Management Module (R0X31A) 2x Fan Trays (R0X32A) 1x R0X38B Line Card 1x R0X39B Line Card Power supply units not included; order separately 96x 10/100/1000BaseT PoE+ Ports supporting up to 30W per port 4x 1/10/25/50G1SFP ports Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A

Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App

 1x 6405 Chassis (R0X24A) 1x Management Module (R0X31A) 2x Fan Trays (R0X32A) 2x R0X43A Line Card Power supply units not included; order separately 48x 1G/10G SFP+ ports 8x 1/10/25/50G1SFP ports Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A

Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W)

1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type A Host port 1x Bluetooth dongle to be used with CX Mobile App

 1x 6410 Chassis (R0X25A) 1x Management Module (R0X31A) 4x Fan Trays (R0X32A) 1x R0X38B Line Card 1x R0X39B Line Card 8 open module slots Power supply units not included; order separately 96x 10/100/1000BaseT PoE+ Ports supporting up to 30W per port 4x 1/10/25/50G1SFP ports Supports any of the following line cards in the open slots: R0X38B, R0X39B, R0X40B, R0X41A, R0X42A, R0X43A, R0X44A, R0X45A Supports PoE Standards IEEE 802.3af, 802.3at, 802.3bt (up to 60W) 1x RJ-45 Console Port 1x USB-C Console Port 1x OOBM 1x USB Type A Host port 1x Bluetooth dongle to be used with AOS-CX Mobile App
Power supplies

Supports four modular front-serviceable power supplies with removable rear-serviceable power cord inlet adapters. Supported Power Supplies: R0X35A, R0X36A. PoE available will be dependent on the number of management modules, line cards, fan trays and the number of power supplies used. Power supplies not included; order separately.
Fans Two field replaceable system fan trays Four field replaceable system fan trays Two field replaceable system fan trays Two field replaceable system fan trays Four field replaceable system fan trays
Physical characteristics
Dimensions (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″) (H) 52.88 cm x (W) 44.26 cm x (D) 44.85 cm (20.8″ x 17.5″ x 17.7″) (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″) (H) 30.66 cm x (W) 44.26 cm x (D) x 44.85 cm (12.1″ x 17.5″ x 17.7″) (H) 52.88 cm x

(W) 44.26 cm x

(D) 44.85 cm

(20.8” x 17.5” x 17.7”)
Configuration Weight 29.3 kg (64.7 lbs) 53.5 kg (118.2 lbs) 34.1 kg (75.2 lbs) 34.0 kg (75 lbs) 58.3 kg (128.8 lbs)
Additional Specifications
CPU

Management Module: Quad Core ARM Cortex™ A72 @ 1.8GHz Line Card: Dual Core ARM Cortex™ A72 @ 1.8GHz
Memory and Flash

Management Module: 16GB DDR4 ECC memory; 32GB eMMC Flash memory Line Card: 4GB DDR4 memory
Packet Buffer

R0X38A-R0X43A and R0X38B-R0X40B Line Cards: 8MB packet buffer memory per line card R0X44A-R0X45A Line Cards: 32MB packet buffer memory per line card
Performance
System Switching Capacity 14 Tbps 28 Tbps 14 Tbps 14 Tbps 28 Tbps
System Throughput Capacity 5.7 Bpps 11.4 Bpps 5.7 Bpps 5.7 Bpps 11.4 Bpps
Average Latency (LIFO-64-bytes packets)

1G: 5.32 μSec

10G: 1.48 μSec

25G: 2.78 μSec

40G: 1.31 μSec

100G: 1.42 μSec
Switched Virtual Interfaces (dual stack)

2,048
IPv4 Host Table (ARP)

49,152
IPv6 Host Table (ND)

49,152
IPv4 Unicast Routes

61,000
IPv6 Unicast Routes

61,000
IPv4 Multicast Routes

8,192
IPv6 Multicast Routes

8,192
MAC Table Capacity

32,768
IGMP Groups

8,192
MLD Groups

8,192
IPv4/IPv6/MAC ACL Entries (ingress)

64,000/16,384/64,000 per line card for R0X44A and R0X45A

20,480/5,120/20,480 per line card for all other line cards
IPv4/IPv6/MAC ACL Entries (egress)

20,480/5,120/20,480 per line card for all other line cards

8,192/2,048/8,192 per line card for all other line cards
VRF

256
Environment
Operating Temperature

32°F to 113°F (0°C to 45°C), up to 5,000 feet 32°F to 104°F (0°C to 40°C), 5,001 to 10,000 feet 1°C de-rating per 1,000 feet above 5,000 feet
Operating Relative Humidity

15% to 95% relative humidity at 113°F (45°C), non-condensing
Non-Operating

-40°F to 158°F (‘-40°C to 70°C)
Non-Operating Storage relative humidity

15% to 95% relative humidity at 149°F(65°C), non-condensing
Max Operating Altitude

Up to 10,000 feet (3 km)
Max non-operating Altitude

Up to 15,000 feet (4.5 km)
Acoustics

Sound power (LWAd): 6.6 Bel, Sound Pressure (LpAm, Bystander): 46.6 dB when tested with 2 x 1800W PSU (R0X35A), 2 x fan trays, 370W of PoE and traffic on all ports

Sound power (LWAd): 6.5 Bel, Sound Pressure (LpAm, Bystander): 46.3 dB when tested with 2 x 3000W PSU (R0X36A), 2 x fan trays, 370W of PoE and traffic on all ports





Sound power (LWAd): 6.8 Bel, Sound Pressure (LpAm, Bystander): 48.8 dB when tested with 2 x 1800W PSU (R0X35A), 4 x fan trays, 370W of PoE and traffic on all ports Sound power (LWAd): 6.8 Bel, Sound Pressure (LpAm, Bystander): 48.9 dB when tested with 2 x 3000W PSU (R0X36A), 4 x fan trays, 370W of PoE and traffic on all ports







Sound power (LWAd): 6.6 Bel, Sound Pressure (LpAm, Bystander): 46.6 dB when tested with 2 x 1800W PSU (R0X35A), 2 x fan trays, 370W of PoE and traffic on all ports

Sound power (LWAd): 6.5 Bel, Sound Pressure (LpAm, Bystander): 46.3 dB when tested with 2 x 3000W PSU (R0X36A), 2 x fan trays, 370W of PoE and traffic on all ports



 Not available

Sound power (LWAd): 6.8 Bel, Sound Pressure (LpAm, Bystander): 48.8 dB when tested with 2 x 1800W PSU (R0X35A), 4 x fan trays, 370W of PoE and traffic on all ports Sound power (LWAd): 6.8 Bel, Sound Pressure (LpAm, Bystander): 48.9 dB when tested with 2 x 3000W PSU (R0X36A), 4 x fan trays, 370W of PoE and traffic on all ports




Primary Airflow

Front-to-Back
Electrical Characteristics
Frequency

50/60 Hz
80plus.org certification

Platinum rated for both R0X35A and R0X36A PSUs
AC Voltage

R0X35A and R0X36A PSUs: 110-127 / 200-240VAC
Current

R0X35A PSU: 12A @ 110-127VAC, 10A @ 200-240VAC R0X36A PSU: 16A @ 110-240VAC
Power Output

R0X35A PSU: 1800W @ 200-240VAC, 1100W @ 110-127VAC
R0X36A PSU: 3000W @ 200-240VAC, 1500W @ 110-127VAC
Safety

EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013

EN62368-1:2014

IEC 60950-1:2005 Ed.2; AM 1:2009+A2:2013

IEC 62368-1 Ed. 2

IEC 60825:2007 (Applies to products with lasers)

UL 60950-1, CSA 22.2 No 60950-1

UL 62368-1 Ed. 2
Emissions

VCCI Class A; EN 55022 Class A; CISPR 22 Class A; IEC/EN 61000-3-2

IEC/EN 61000-3-3; ICES-003 Class A; AS/NZS CISPR 22 Class A; FCC (CFR 47, Part 15) Class A; GB9254

EN55032:2012 Class A

CISPR32:2012 Class A
Immunity
Generic

Directive 2014/35/EU
EN

EN 55024:2010 +A1:2001 +A2:2003; ETSI EN 300 386 V1.3.3
ESD

EN 61000-4-2
Radiated

EN 61000-4-3
EFT/Burst

EN 61000-4-4
Surge

EN 61000-4-5
Conducted

EN 61000-4-6
Power frequency magnetic field

IEC 61000-4-8
Voltage dips and interruptions

EN 61000-4-11
Harmonics

IEC/EN 61000-3-2
Flicker

IEC/EN 61000-3-3
Mounting and Enclosure

Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately
