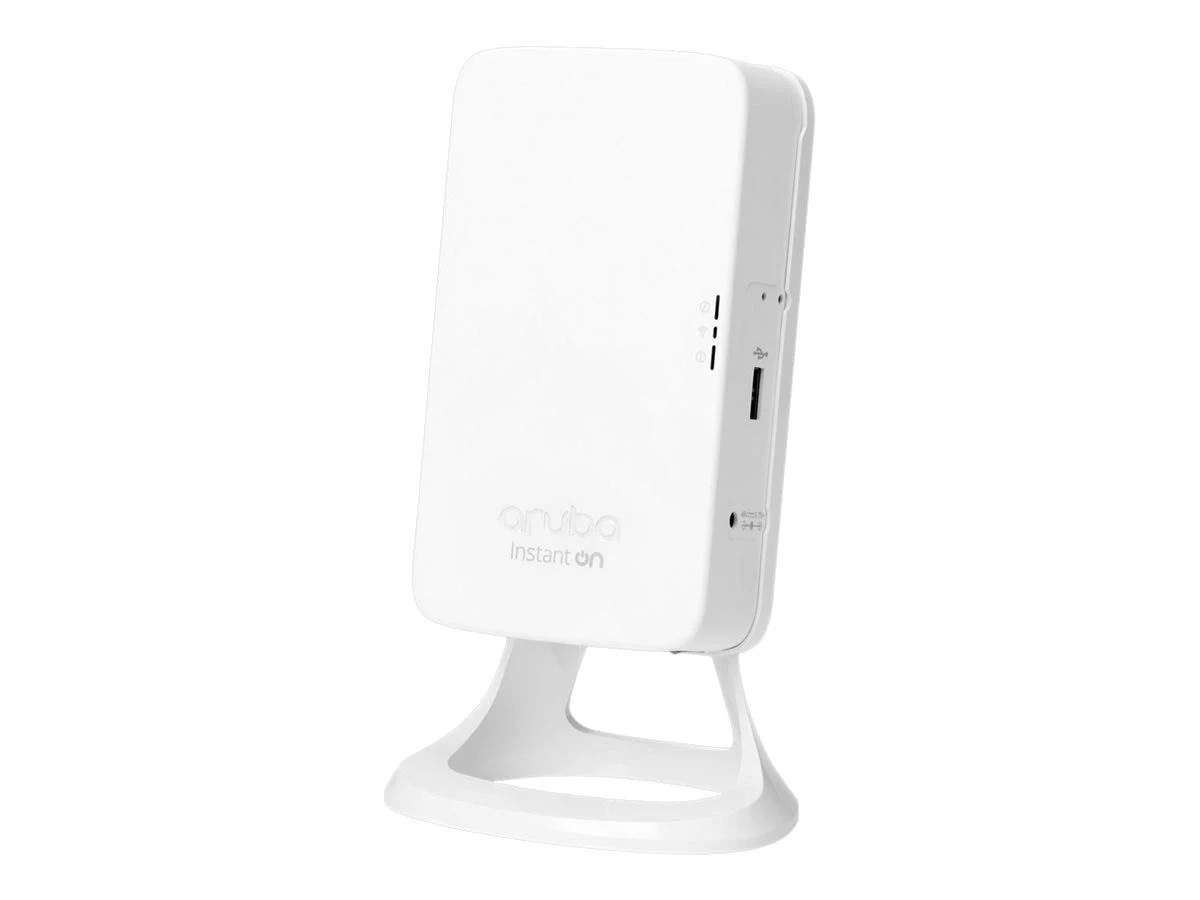

Aruba Instant On AP11D Access Point – R2X16A

About this product:

The Aruba Instant On AP11D 2×2 11ac Wave2 is a versatile all-in-one unit, seamlessly integrating wireless and wired access. Its compact design allows for effortless wall or desk mounting, ensuring a sleek and unobtrusive fit in any setting. Tailored for environments such as home offices, hotel rooms, and medical offices, it combines functionality with an aesthetically pleasing appearance.

What’s in the box?

AP11D Access Point
Quick Start Guide
Single-Gang Mount Kit
Desk Mount Kit With An Rj45 Jumper Cable
Ethernet Cable

Description

About Aruba Instant On AP11D Access Point – R2X16A:

The Aruba Instant On AP11D 2×2 11ac Wave2 is a single compact device combining both; wireless and wired access that can be easily mounted on a wall or desk. The aesthetically pleasing design of the single gang wall and desk-mount kits allow the AP to blend seamlessly into any environment. It is perfect for home offices, hotel rooms and medical offices.

Features of Aruba Instant On AP11D Access Point – R2X16A:

Supports up to 50 devices at a time
Fast 802.11ac Wave 2, 2X2:2 U-MIMO performance
Smart Mesh Wi-Fi support
Content and device-blocking controls
Simple to use bandwidth tuning for power-users
Easy-to-use web and mobile app for setup management
Secure Guest Wi-Fi with a simple setup
Application classification, control, and visibility
PPPoE and static IP

Specification

Weight	0.313 kg
Dimensions	8.6 × 4.0 × 15.0 cm
Brand	HPE Aruba
Model Number	R2X16A
Model Name	HPE Aruba Instant On AP11D (RW) 2×2 11ac Wave2 Desk/Wall Access Point
Wireless Standard	IEEE 802.11n – 2.4 GHz; IEEE 802.11ac – 5 GHz
Wireless Technology	Wi-Fi 5
Band Technology	Dual Band 2×2 MU-MIMO
Antenna Gain	4.3 dBi in 2.4 GHz 6.2 dBi in 5 GHz
Max. Data Transfer Rate	1167 Mbps 300 Mbps on 2.4 GHz (Wi-Fi 4) 867 Mbps on 5 GHz (Wi-Fi 5)
Security Mode	WPA2, WPA3
Operating Mode	AP
Power	PoE on E0: 802.3af (class 3) or 802.3at (class 4). When using 802.3af, POE-out on E3 is disabled Max power consumption (worst-case): 9.7W (PoE/DC) or 25.3W PoE PSE (302.3at PoE/DC) DC power (48V): no restrictions Note: Power sources are sold separately
Interface	Uplink Gigabit Ethernet port (E0), with POE-in support (802.3at/802.3af) Downlink Gigabit Ethernet ports (E1-E3), with POE-out on E3 (802.3af) (3) DC power connector (48V) USB host interface (future use) Bluetooth Low Energy (BLE) radio LED Status indicators (3) Reset/LED control button
Operating Temperature	0° C to +40° C
Management	Instant On Mobile Application Cloud Portal – Portal.ArubaInstantOn.com
Colour	White
Warranty	2 years
