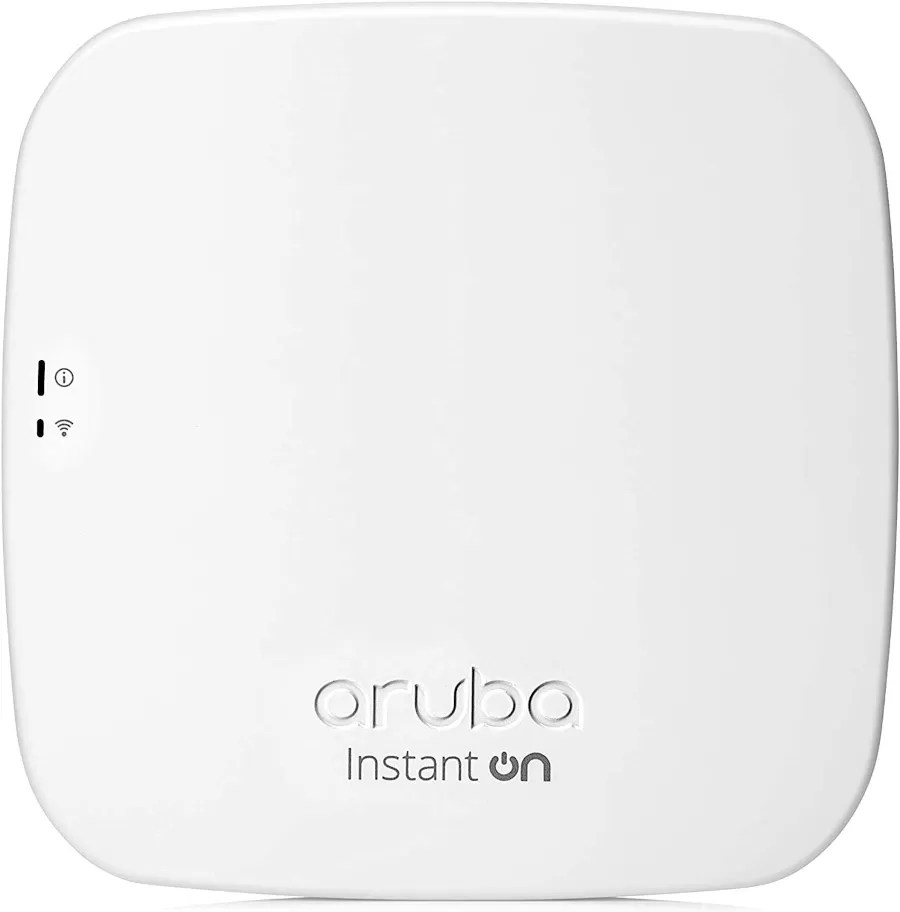

Aruba Instant On AP12 Access Point – R2X01A

About this product:

The Aruba Instant On AP12 is an indoor access point that operates on the 3X3 11ac Wave2 standard, aiming to deliver impressive performance. It significantly enhances networking capabilities, accommodating multiple devices simultaneously, which makes it a great fit for demanding indoor environments such as bustling retail stores, medical offices, hospitality businesses, and law and accounting firms.

What’s in the box?

Ap12 Access Point
Quick Start Guide
Ceiling Rail Mount Clip
Solid Surface Mount Clip
Ethernet Cable

Description

About Aruba Instant On AP12 Access Point – R2X01A:

The Aruba Instant On AP12 is an indoor access point, operating on a 3X3 11ac Wave2 standard, aimed at delivering impressive performance. It significantly enhances networking capabilities, accommodating multiple devices concurrently, making it well-suited for demanding indoor environments. This includes bustling retail stores, medical facilities, hospitality settings, as well as law and accounting firms.

Features of Aruba Instant On AP12 Access Point – R2X01A:

Supports up to 75 devices at a time
Fast 802.11ac Wave 2, 3X3:3 MU-MIMO performance
Smart Mesh Wi-Fi support
Built-in Wi-Fi router/gateway functionality
Content and device blocking controls
Simple to use bandwidth tuning for power-users
Easy-to-use web and mobile app for setup and management
Secure Guest Wi-Fi with a simple setup
Application classification, control, and visibility
PPPoE and Static IP

Specification

Weight	0.483 kg
Dimensions	16.7 × 16.2 × 3.4 cm
Brand	HPE Aruba
Model Number	R2X01A
Model Name	HPE Aruba Instant On AP12 (RW) 3X3 11ac Wave2 Indoor Access Point
Wireless Standard	IEEE 802.11n – 2.4 GHz IEEE 802.11ac – 5 GHz
Wireless Technology	Wi-Fi 5
Band Technology	Dual Band 3×3 MU-MIMO
Antenna Gain	3.9 dBi in 2.4 GHz 5.4 dBi in 5 GHz
Max. Data Transfer Rate	1600 Mbps 300 Mbps on 2.4 GHz (Wi-Fi 4) 1300 Mbps on 5 GHz (Wi-Fi 5)
Security Mode	WPA2, WPA3
Operating Mode	AP
Power	POE: 802.3af (class 3) Max power consumption (worst-case):13.0W (PoE), 12.0W (DC) DC power (12V) Note: Power sources are sold separately
Interface	Uplink Gigabit Ethernet port, with POE-in support (802.3af) DC power connector (12V) USB host interface (future use) Bluetooth Low Energy (BLE) radio LED status indicators (2) Reset/LED control button Kensington security slot
Operating Temperature	0° C to +50° C
Management	Instant On Mobile Application Cloud Portal – Portal.ArubaInstantOn.com
Colour	White
Warranty	2 years
