Wanderbox Gateway


wanderbox-gateway-logo

PRODUCT FOCUS

  •   "3-in-1" product set:
  •   Router/Firewall +
  •   SIP/WebRTC Gateway +
  •   (optional) PBX +
  •   UC&C. SIP, Telco, and WebRTC connectivity solution for Small Businesses!

MODELS

Models WB(G)-SX WB(G)-SX-AG WB(G)-202S WB(G)-40 WB(G)-4S WB(G)-2B WB(G)-1P WB(G)-2P
VoIP 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch
TDM - - 2FXO + 2FXS 4FXO 4FXS 2BRI 1PRI 2PRI
Eth 2 2 2 2 2 2 4 4
GSM/LTE - 1 LTE (Cat 4) - - - - - -

ABOUT THIS PRODUCT

  •   Integrated Voice and Data service for Small Businesses
  •   WebRTC, SIP and Telecoms convergence
  •   32,000 minutes Call Recording (trunk-side)
  •   License & application upgrades to full featured PBX
  •   Fixed Mobile Convergence: GSM/LTE

ADVANTAGES

  •   Zero Hardware Obsolescence:
  •   Upgrade to 8, 12, 16, 20, 24, 28, 32 VoIP channels (via license purchase)
  •   Full PBX feature set (via license purchase)
  •   Ultimate Security features
  •   Integrated Router / Firewall
  •   Lock out hackers via blacklisting
  •   Strong password generator
  •   Reduced business costs:
  •   Migrate from legacy networks to VoIP and WebRTC
  •   Set monthly call limits (budget trunk'ing)
  •   Enhanced business services:
  •   Catch call when the old PBX is busy
  •   Load custom announcements to market your business
  •   Dispute Resolution: integrated call recording, on device

KEY FEATURES

  •   Network protocols: PPP, PPPoE, HDLC, Cisco HDLC, IPv4
  •   Network services: DDNS, DHCP, VPN, VLAN, SSH, HTTP, SSH
  •   Routing: NAT, NAT traversal, SIP ALG, Port forwarding
  •   Firewall: Policy and Access Control Lists, Filters, DMZ
  •   Telecom interfaces:
  •   Analogue (2 to 4 FXS and 2 to 4 FXO)
  •   Basic Rate ISDN (2 or 4, TE or NT)
  •   Primary Rate ISDN (1 or 2, TE or NT)
  •   CODEC's: 4 channels (upgrade to 32)
  •   WAN trunks:
  •   2 Ethernet
  •   LTE Cat 4 or Cat 6 (Advanced)
  •   WiFi Access Point or Client
  •   QoS:
  •   Enhanced Class of Service support:
  •   DSCP: Differentiated Services Code Points
  •   802.1P: VLAN priority as per IEEE 802.1Q
  •   ViBE management
  •   Back to Back User Agent Mode (B2BUA), including:
  •   CODEC’s: OPUS, G.729a, G.711, G.723, G.726, ILBC
  •   SIP/TCP
  •   Flexible, dynamic call routing including:
  •   DDI and CLI number pattern matching
  •   Register 2 IP users (for emergency calls)
  •   Memory capacity: 16GB Flash
  •   32,000+ minutes on-device call recording (HTTP based archiving)

DIAGNOSTICS

Nagios based reporting

MAINTENANCE & PROVISIONING

  •   Web-based GUI: Device administrator log-in
  •   Backup & Restore (configuration, CDRs, voice-mail, recordings)

Wanderbox duo Gateway

Wanderbox duo Gateway

PRODUCT FOCUS

  •   Router/Firewall +
  •   SIP/WebRTC Gateway +
  •   (optional) PBX +
  •   UC&C. SIP, Telco and WebRTC connnectivity solution for Small Businesses!

MODELS

Models WB(G)duo-SX WB(G)duo-SX-AJ WB(G)duo-4O4S WB(G)duo-8B WB(G)duo-2P WB(G)duo-1P-AI WB(G)duo-1P2O2S
VoIP 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch 4, 8, ... 32 ch
TDM - - 4FXO + 4FXS 8BRI 2PRI 1PRI 1PRI + 2FXO + 2FXS
Eth 2 2 2 2 4 4 4
GSM/LTE - 2 LTE (cat6) - - - 1 LTE (cat6) -

ABOUT THIS PRODUCT

  •   Integrated Voice and Data service for Small Businesses
  •   WebRTC, SIP and Telecoms convergence
  •   32,000hrs Call Recording (trunk and extension)
  •   License & application upgrades to full featured PBX
  •   FMC: Single or Dual LTE cat 4 or LTE cat 6 (Advanced)

ADVANTAGES

  •   Zero Hardware Obsolescence:
  •   Upgrade to 8, 12, 16, 20, 24, 28, 32 VoIP channels (via license purchase)
  •   Full 3CX PBX feature set (via license purchase)
  •   Ultimate Security features
  •   Integrated Router / Firewall
  •   Lock out hackers via blacklisting
  •   Strong password generator
  •   Reduced business costs:
  •   Migrate from legacy networks to VoIP and WebRTC
  •   Set monthly call limits (budget trunk'ing)
  •   Enhanced business services:
  •   Catch call when the old PBX is busy
  •   Load custom announcements to market your business
  •   Dispute Resolution: integrated call recording, on device

KEY FEATURES

  •   Mechanical format: 1/2 19" rack mount
  •   Network protocols: PPP, PPPoE, HDLC, Cisco HDLC, IPv4
  •   Network services: DDNS, DHCP, VPN, VLAN, SSH, HTTP, SSH
  •   Routing: NAT, NAT traversal, SIP ALG, Port forwarding
  •   Firewall: Policy and Access Control Lists, Filters, DMZ
  •   Telecom interfaces:
  •   Analogue (2 to 8 FXS OR 2 to 8 FXO)
  •   Basic Rate ISDN ( 4 to 8, TE or NT)
  •   Primary Rate ISDN (1 or 2, TE or NT)
  •   G.729a CODEC's: 4 channels (upgrade to 8, 12, 16, ... 32)
  •   WAN trunks:
  •   Ethernet
  •   LTE cat 4 or LTE cat 6
  •   WiFi Access Point or Client
  •   QoS:
  •   Enhanced Class of Service support:
  •   DSCP: Differentiated Services Code Points
  •   802.1P: VLAN priority as per IEEE 802.1Q
  •   ViBE management
  •   Back to Back User Agent Mode (B2BUA), including:
  •   CODEC’s: OPUS, G.729a, G.711, G.723, G.726, ILBC
  •   SIP/TCP
  •   Flexible, dynamic call routing including:
  •   DDI and CLI number pattern matching
  •   Register 2 IP users (for emergency calls)
  •   Memory capacity: 16GB Flash
  •   32,000+ minutes on device call recording (http based archiving)

DIAGNOSTICS

Nagios based reporting

MAINTENANCE & PROVISIONING

  •   Web-based GUI: Device administrator log-in
  •   Backup & Restore (configuration, CDRs, voice-mail, recordings)

Com.X20 3CX PBX

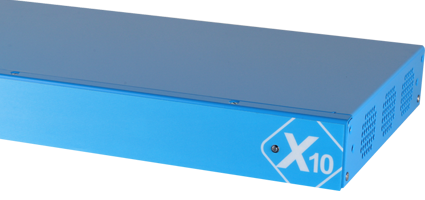

Com.X10 Gateway

PRODUCT FOCUS

"3-in-1" product set: Router/Firewall + SIP Gateway + (optional) PBX. Start with a powerful and flexible SIP Gateway now. Upgrade with PBX features when required.

MODELS

Models Com.X10(G)-30 Com.X10(G)-60 Com.X10(G)-90 Com.X10(G)-120
VoIP 30 ch 60 ch 90 ch 120 ch
PRI 1 to 4 1 to 4 1 to 4 1 to 4
BRI 4 to 8 4 to 8 4 to 8 4 to 8
Analogue 4 to 8 4 to 8 4 to 8 4 to 8

ABOUT THIS PRODUCT

  •   Managed Voice and Data Services for the SMME
  •   Seamless VoIP and legacy TDM telephony convergence
  •   Dynamic, multi-level call routing &prioritization
  •   Near "unlimited" Call Recording (trunk and extension)
  •   License & application upgrades to full-featured PBX
  •   Fixed Wireless Access: GSM (3G and LTE)
  •   Value Added Services
  •   COMPLIANT Call Recording, ATMOS from Call Cabinet

ADVANTAGES

  •   Zero Hardware Obsolescence:
  •   license upgrade includes full PBX feature set
  •   Migrate to hosted, IP centrex services
  •   Ultimate Security features
  •   Integrated Router / Firewall
  •   Lock out hackers via blacklisting
  •   Strong password generator
  •   Enhanced Customer Service
  •   Web based management & provisioning
  •   System monitoring and alert generation
  •   Reduced business costs:
  •   Migrate from legacy networks to VoIP (LCR)
  •   Set monthly call limits (budget trunk'ing)
  •   Enhanced business services:
  •   Catch call when the old PBX is busy
  •   Load custom announcements to market your business
  •   Dispute Resolution: integrated call recording, on device (CPA act compliance)

KEY FEATURES

  •   Network protocols: PPP, PPPoE, HDLC, Cisco HDLC, IPv4
  •   Network services: DDNS, DHCP, VPN, VLAN, SSH, HTTP, SSH
  •   Routing: NAT, NAT traversal, SIP ALG, Port forwarding
  •   Firewall: Policy and Access Control Lists, Filters, DMZ
  •   Telecom interfaces: ISDN (1, 2, 3 or 4 PRI, 4 or 8 BRI), Analogue (8 FXS or FXO)
  •   G.729a CODEC's: 30, 60, 90, 120 (upgradable in groups of 30 channels)
  •   WAN trunks: Gigabit Ethernet
  •   QoS:
  •   Enhanced Class of Service support:
  •   DSCP: Differentiated Services Code Points
  •   802.1P: VLAN priority as per IEEE 802.1Q
  •   ViBE management
  •   Back-to-Back User Agent Mode (B2BUA), including:
  •   CODEC’s; OPUS, G.729a, G.711, G.723, G.726, ILBC
  •   SIP/TCP
  •   Flexible, dynamic call routing including:
  •   DDI and CLI number pattern matching
  •   Number transformation
  •   Load balancing
  •   Register 2 IP users (for emergency calls)
  •   Memory capacity: 128GB SSD
  •   250,000+ minutes on device call recording (HTTPbased archiving)

DIAGNOSTICS

Nagios: E-mail based reporting (plus custom script support)

PROVISIONING AND MAINTENANCE

  •   Web-based GUI: Device admin log-in
  •   Backup & Restore (configuration, CDR's, voicemails, recordings)
