Patton Distributor in UAE & Oman
Bits Secure is an Authorized Partner for Patton Gateway in UAE and Oman. We Supply and install Patton Analog Gateway, Patton PRI Gateway, Patton SIP SBC - SIP enterprise session border controller (eSBC), Virtual SmartNode (vSN) - virtual CPE.
What is VoIP?
Voice-over-Internet-Protocol is a packet-based technology for transmitting digitized voice over an Ethernet/IP network. Because many businesses deliver the packetized voice traffic across the Internet to lower the phone bill, VoIP is sometimes called Internet Telephony. VoIP technology, or packet-based voice, underlies such recent developments as unified communication (UC). Related terms include network transformation-referring to carriers that migrate to All-IP network service delivery-as well as real-time communication, since voice transmission is especially sensitive to network issues as delay and jitter (variance in delay).
T1/E1/PRI ISDN VoIP Gateway
SmartNode 4170
Transport your enterprise phone system to the world of IP Telephony with the SN4170 T1/E1/PRI Gateway. Supports up to 30 concurrent G.711/ G.722 voice/fax calls with secure HTTPS, stateful firewall, and TLS/SRTP.

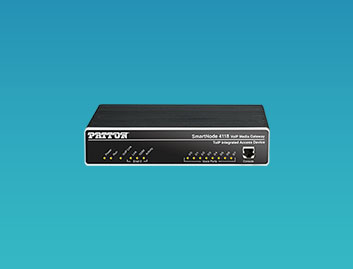

Analog VoIP Gateway with 2-8 FXS/FXO ports
SmartNode 4110
The SmartNode 4110 Analog VoIP Gateway supports up to eight FXS or FXO telephone connections. Connect PSTN Lines, PBXs, and standard phones for voice and fax over any IP network. Now the corporate, small, or remote office can access Internet telephony services, eliminate toll charges and route calls to and from the PSTN, Internet, or LAN.

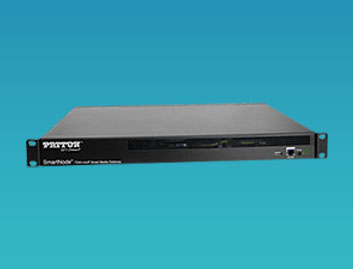

SS7 TDM+VoIP Gateway with T1/E1/J1
SmartNode 10100
The carrier-grade SmartNode 10100 VoIP gateway supports 128 to 256 calls. Smaller service providers can use this SS7 gateway to drive convergence between TDM and IP networks. The SN10100 carrier gateway replaces multiple devices for signaling, connectivity, and media transcoding.
ISDN VoIP Gateway with 2/4 BRI S0 ports
SmartNode 4130
With up to 4 BRI ports and 8 simultaneous G.711 voice channels, the SN4130 is the best way to connect ISDN networks or ISDN terminal equipment to the world of voice over IP. It supports up to 5 G.711 or up to 8 G.722 voice/fax calls concurrently with secure HTTPS, stateful firewall, and TLS/SRTP.
What is a SIP enterprise session border controller (eSBC)?
Session Initiation Protocol (SIP) is the communication technology employed to set up and tear down VoIP phone calls.
A session border controller (SBC) is a networking device positioned between networks to provide call setup and teardown (session), network demarcation/separation (border) and other types of management (control) over the data streams that pass through the device. Because the SIP specification allows for variations in implementation, a networking device known as a session border controller (SBC) is typically required at the demarcation point between carrier networks (peer-to-peer) or between the service provider network and the business subscriber LAN. In the latter case the device is called an enterprise session border controller (eSBC)-as distinct from a carrier-class SBC. Installed on the subscriber premises, the eSBC provides several essential networking functions for businesses that connect to an Internet Telephony Service Provider (ITSP) over a SIP trunk.
SmartNode Virtual Enterprise Session Border Controller
Virtual SmartNode
SmartNodes are the leading and field proven CPEs running Patton Proprietary OS. The same, feature-rich software used for the CPEs can also be used in virtual environments for a high level of scalability and service availability.

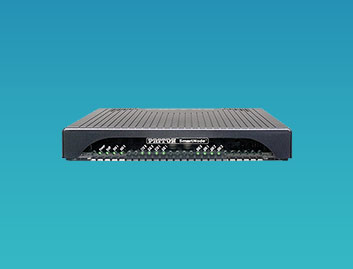

BRI Session Border Controller
+ Router
SmartNode 5530
Cost effective SIP SBC provides 2 or 4 ISDN BRI S0 ports with secure TLS and SRTP encryption. The SmartNode™ 5530 Session Border Controller & Router bridges the wide range of IP-PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network.

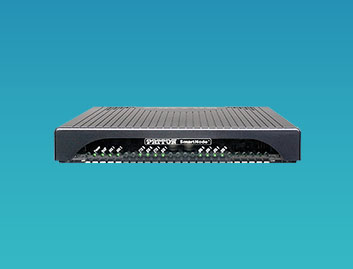

PRI Session Border Controller
+ Router
SmartNode 5570
The cost effective SmartNode 5570 ESBC provides 1 or 2 T1/E1/PRI ports with state-of-the-art security features. Transcoding for up to 16 SIP-to-SIP calls, high-definition G.722 codec, and QoS deliver optimum voice quality over IP.

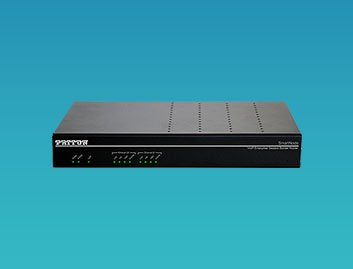

SIP-to-SIP Session Border Controller + Router
SmartNode 5480
Providing up to 64 transcoded calls, the SmartNode™ 5480 session border controller and router connects the wide range of IP PBX products to their service providers ensuring security and a high level of efficiency in the VoIP network.
What is a VoIP Router?
A VoIP router (see What is VoIP?) is a hybrid networking device installed on the customer premise that provides advanced IP routing services combined with standard voice media gateway functions (see What is a VoIP Gateway?). Among the chief advantages of a VoIP router is the ability to manage intra-company dialing plans, including PSTN breakout for long-distance toll bypass between branch offices. Additional IP routing features may also be provided by a VoIP router, including access control list (ACL) and payload encryption using such networking protocols as VoIP-VPN IPsec or TLS/SRTP.

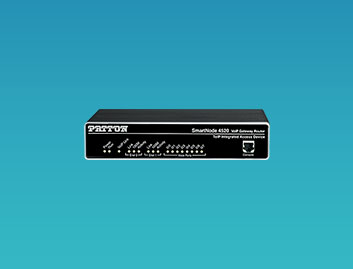

Analog VoIP Router with 2-8 FXS/FXO ports
SmartNode 4520
The SmartNode 4520 VoIP Gateway-Router supports up to 8 FXS or FXO telephone connections. It combines voice-over-IP (VoIP) with advanced Quality of Service (QoS) and full Internet access and security features to provide best-in-class service and voice quality.

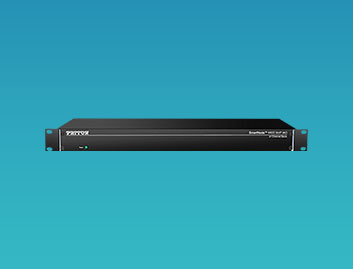

Analog VoIP Router with 12-32 FXS/FXO ports
SmartNode 4400
Cost-effective analog VoIP-router solution connects 12 to 32 analog phone, fax or PSTN trunk lines to your IP environment.
BRI So Digital VoIP Router with 3 or 5 ports
SmartNode 4630
Award-winning SmartNode™ 4630 BRI So VoIP Router delivers business class Internet telephony for demanding ISDN users with 3 or 5 BRI ports for up to 4 or 8 concurrent VoIP or T.38 fax calls.

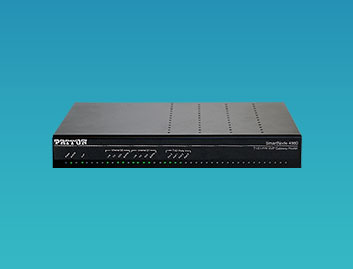

Enterprise PRI/T1/E1 ISDN VoIP Router
SmartNode 4980A
IP-enable legacy PBX systems with the SmartNode 4980 PRI VoIP Router. Supports up to 120 concurrent VoIP calls. This VoIP Gateway with built-in IP Router connects any PBX system with advanced IP telephony services and the PSTN.
Common VoIP Gateway Synonyms
- IP Media gateway
- SIP gateway
- Voice gateway
- TDM gateway
- PSTN gateway
- PRI gateway
- ISDN gateway
- Digital Telephony gateway
- FXO Gateway
- FXS Gateway
- Enterprise Gateway
- SME Gateway
- Digital Telephony Gateway
- Analog Telephone Adapter (ATA)
Abbreviation Synonyms
| VoIP | Voice over IP |
| SIP | Session Initiation Protocol |
| IP | Internet Protocol |
| TDM | Time Division Multiplexing |
| PRI | Primary Rate Interface |
| ISDN | Integrated Services Digital Network |
| PSTN | Public Switched Telephone Network |
| ITSP | Internet Telephony Service Provider |
| FXS | Foreign eXchange Subscriber interface |
| FXO | Foreign eXchange Office interface |
